SELECTION GUIDE

Notes:

  1. For Models ERQT 0815/0830/1530/1560 with (0)4-20 mA/Intelligent Control interface i-CON, should be construed/stated as i-CON1 and for Models ERQT3030/3060 with (0)4-20 mA/Intelligent Control interface i-CON, should be construed/stated as i-CON2.
  2. For Basic Models ERQT 0815/0830/1530/1560 – Max. 4 nos. and for Models ERQT 3030/3060 Max. 2 nos. of Auxiliary Switches can be provided. For Intelligent Control
    Models ERQT 0815/0830/1530/1560/3030/3060 – Max. 2 nos. of Auxiliary Switches can be provided.
    For Basic with Local Station option Models ERQT 0815/0830/1530/1560/3030/3060 – Max. 2 nos. of Auxiliary Switches can be provided.

    For Basic Models ERQT 0815/0830/1530/1560, set up for 180° rotation; a maximum of 2 nos. of Auxiliary Switches can be provided along with Potentiometer.

  3. Potentiometer as an accessory/option for OHMIC position feedback can be offered with basic versions only; is not applicable (00/NA) for Intelligent Control versions. Actuators with i-CON Intelligent Control, provide (0)4-20 mA feedback, built-in, as standard.

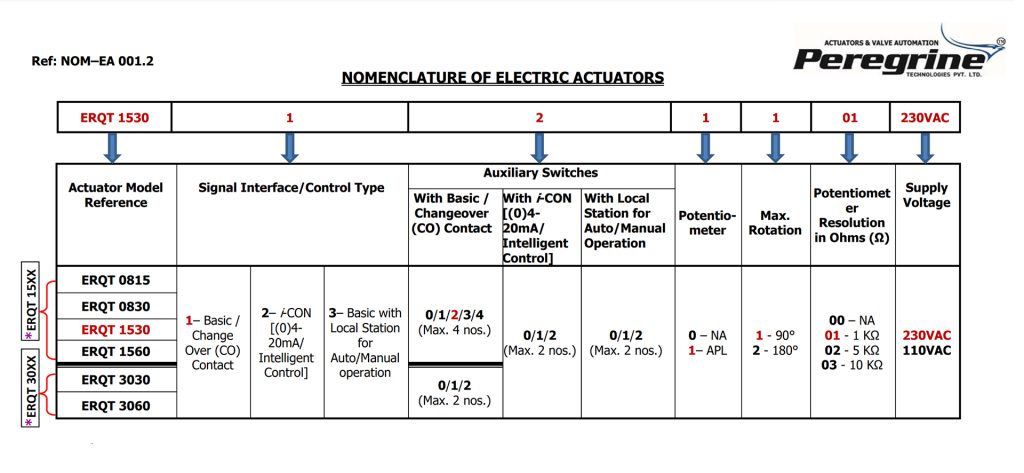

Example 1: ERQT 1530 -1-2-1-1-01, 230VAC should be interpreted as follows:

13042023

ERQT 1530– Actuator Model Reference, 1– Basic PCB Card, 2– 2 nos. Auxiliary Switches, 1– Potentiometer Applicable, 1– 90° Rotation, 01– 1 KΩ Potentiometer resolution, 230 VAC– Supply Voltage

Example 2: ERQT 3060-3-2-1-1-01, 230VAC should be interpreted as follows:

ERQT 3060– Actuator Model Reference, 3– Basic PCB Card incorporating Local Station for Auto/Manual operation, 2– 2 nos. Auxiliary Switches, 1– Potentiometer Applicable, 1– 90° Rotation, 01– 1 KΩ Potentiometer resolution, 230 VAC– Supply Voltage

*Actuators ERQT 0815/0830/1530 & 1560 despite their varied torque ratings and cycle times have the same external dimensions -are collectively referred to as ERQT 15XX; likewise, ERQT3030 & 3060 are clubbed as ERQT 30XX.
